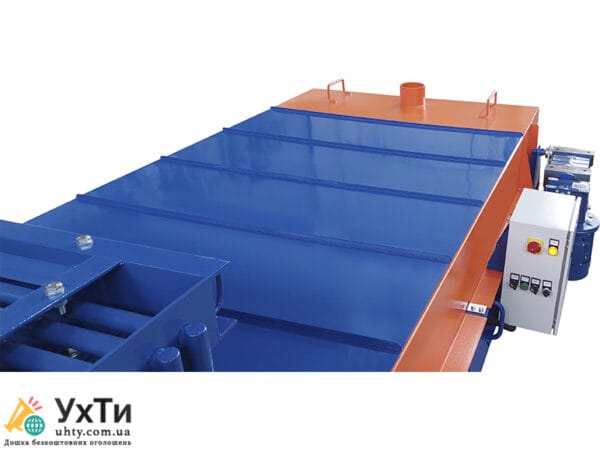

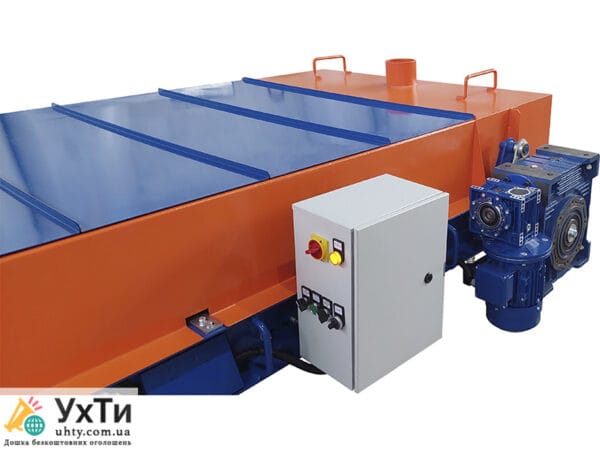

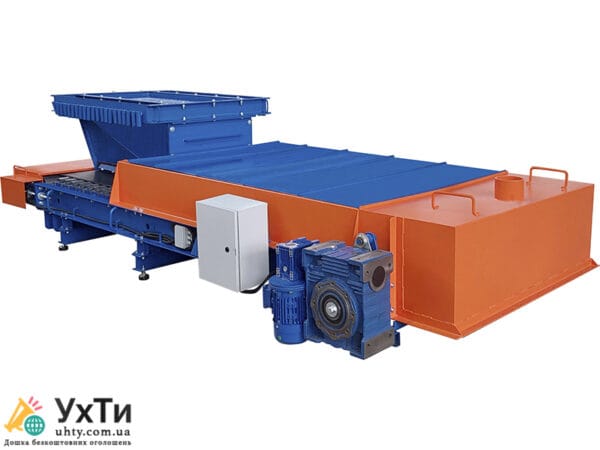

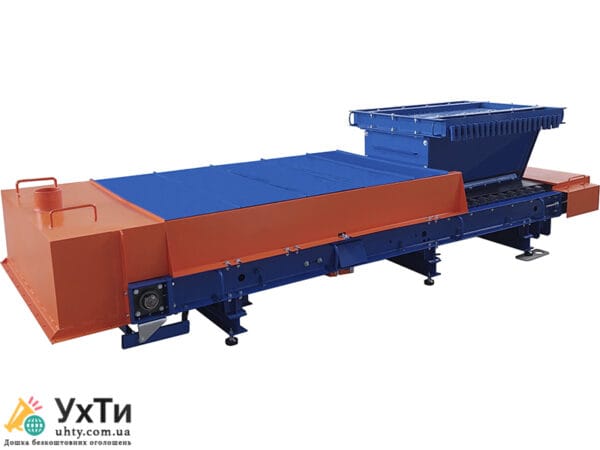

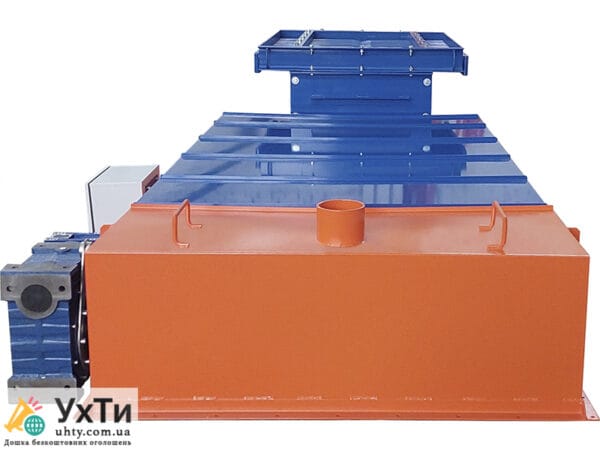

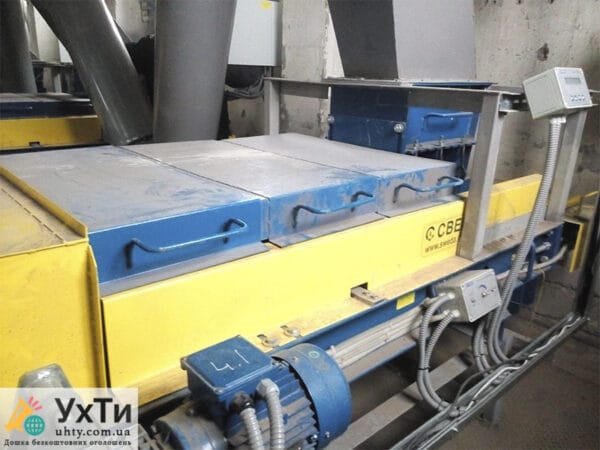

Tape dispenser Designed for continuous dosing with a given capacity, weighing and accounting of bulk materials in various technological processes.

Features:

  • Precise maintenance of the specified performance (±0.5%);
  • Execution for conveyor belt width from 500mm to 1200mm, conveyor length from 2m to 6m, temperature range of the dosed material up to 200°C
  • Wide range of dispenser performance;
  • Equipped with a pin or knife gate valve;
  • Using components from leading world manufacturers;
  • Data output to a remote display and a computer as part of the process control system.

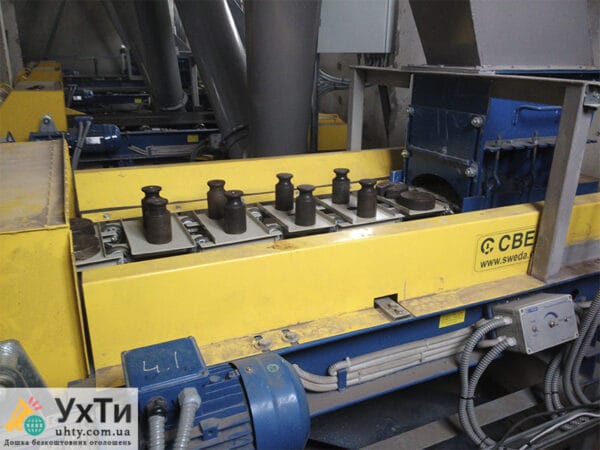

  • The dispenser can be equipped with a special device for its dynamic calibration.

Technical data:

AXON 8800-16000 mAh uninterruptible power supply for router

👉 More about AXON UPS with manual quality control

Maximum productivity limit (MPL), t/h – 4-630

The limit of permissible dosage error, in % from NGP – ± 0.5; ± 1

Conveyor belt speed, m/s – 0.01 ÷ 0.5

Conveyor belt width, mm – 500-1200

Operating temperature, ° C – from -10 to +50

Functions:

– Maintaining the specified performance;

– Accounting for the material passed by the conveyor;

– Indication of productivity values, variable and increasing totals;

– Shipment of a given dose of material with a given productivity;

– Signal output (0-5mA, 4-20mA) proportional to performance;

– Saving current data when the power is turned off.
