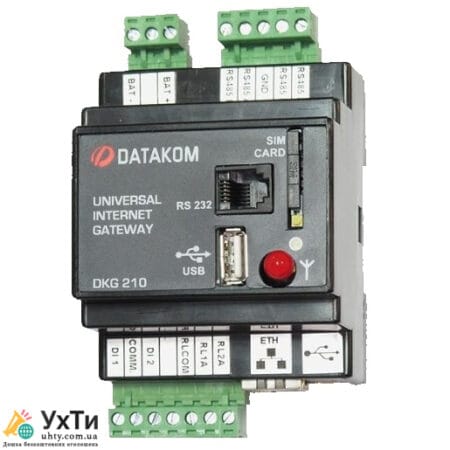

The DKG-210 intelligent module connects any industrial device to the Rainbow Scada remote monitoring and control system via the Internet. It supports both Ethernet and GPRS connections.
DKG-210 is designed for internet monitoring and control of industrial devices using various protocols through RAINBOW SCADA monitoring system. DKG-210 does not require any static or real IP number or port forwarding. It is a simple plug & play device that works on any internet connection.
The RAINBOW SCADA system is informational (rather than query-based), so data traffic is reduced and data security is enhanced.
The Modbus slave device map is stored on a central server and automatically downloaded to the DKG-210 when needed, so firmware updates to add new device types to the monitoring system are not required.

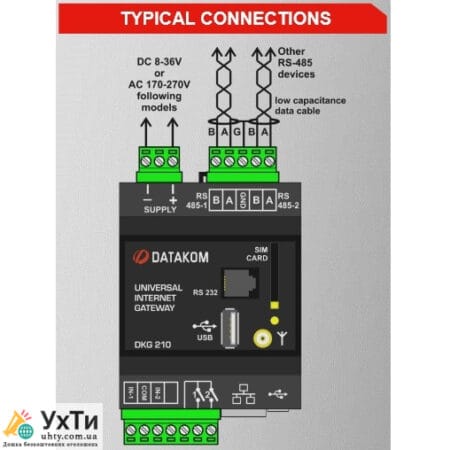

The data ports available for device polling include dual RS-485, RS-232, and USB. The device supports up to 32 devices on each RS-485 port. By adding RS-232 and USB ports, a maximum of 66 devices can be polled using a single DKG-210. Supported protocols include, but are not limited to, MODBUS-RTU, IEC62056, and Datakom-Rainbow communication.
The DKG-210 device has 2 relay outputs for remote control and 2 digital inputs for remote sensing.
COMMUNICATION:Ethernet port (10/100 Mb)Internal GPRS modem (optional)Two RS-485 ports, adjustable speedRS-232, adjustable baud rateUSB host 2.0USB device 2.0
FEATURES: Plug & Play IP system, easy installation Ensures data security with dynamic IP AC and DC power types available Free PC configuration software Internal GPRS modem with magnetic antenna Supports Ethernet and GPRS connection Two RS-485 ports RS-232 port USB host port 2 x digital inputs 2 x relay outputs GPRS can backup Ethernet DIN rail mountable
TECHNICAL SPECIFICATIONS: Power supply: - DC power models: 8.0 to 36.0 VDC. - AC power models: 170 to 270 VAC. 50/60 HzPower consumption: 5 W / 5 VA maxDigital inputs: 6 to 135 V DC (6 to 270 V AC).Relay outputs: 5 A @ 250 VEthernet port: 10/100 MbpsUSB device: USB 2.0 Full speedUSB host: USB 2.0 Full speedRS-485 ports: 1200-115200 baudRS-232 port: 1200-115200 baudOperating temperature: -20°C to 70°C (-4 to +158°F)Storage temperature: -40°C to 80°C (-40 to +176°F)Maximum humidity: 95% non-condensingDimensions: 70 x 115 x 66 mm (W x H x D) x H x D)Weight: max. 400 g.Mounting: DIN railHousing material: high-temperature, non-flammable ABS/PC
