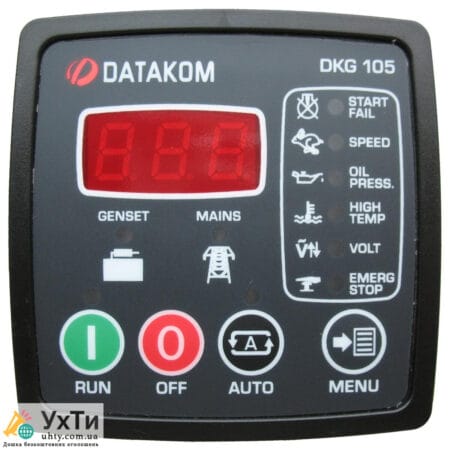

DKG-105 Automatic generator control and reserve input controller

The DKG-105 is a microprocessor-based digital device that offers all the functions necessary for automatic control of a generator set.

The device fits into a standard 72×72 mm meter opening and offers a very cost-effective and space-saving solution for basic generator set control.

👉 More about AXON UPS with manual quality control

In automatic mode, the unit monitors 3 phases of voltage in the network and controls the automatic start, stop, and load transfer of the generator.

When the generator is running, the device monitors internal protections and external fault input signals.

The DKG-105 provides a full range of digitally adjustable timers and threshold levels. The relay configuration is also programmable, allowing it to control various types of engines, including gasoline engines.

Programs can be changed by the customer using buttons on the device and do not require an external device.

FEATURES:Automatic engine start and stopGas engine supportAutomatic network fault monitoringAutomatic load transferAutomatic fault shutdownTest mode availableSurvives when scrollingDigital engine hours displayPower supply for stop, preheat and stop outputsChecking network phase voltage limitsChecking generator phase voltage limitsOverspeed delay and speed reduction alarmDigital adjustment of low and high network voltageDigital adjustment of low and high generator voltage limitsDigital adjustment of low and high generator voltage limitsDigital adjustment of low and high speed limitsDigital adjustment of delay for speed alarmDigital adjustable timersDigital display of network and generator voltageDigital display of generator frequencyPlug-in connection system for easy replacementLow costSmall dimensionsStandard panel dimensions, (72×72 mm)

TECHNICAL SPECIFICATIONS:Mains voltage: 277 VAC (Ph-N)Mains frequency: 50/60 Hz.Power supply system type: TN or TT.Generator voltage: 277VAC (Ph-N)Generator frequency: 0-100 Hz.Measurement category: CAT IIDC supply range: 9 to 33 VDC.4.0 – 33 VDC during scrollingCurrent consumption: typical 60 mADC (AUTO mode, mains OK)200 mADC max. (Relay outputs open) Total DC output current: 10ADC. Total AC output current: 10AAC. Rated current for each output terminal: 10ARMS. Operating temperature range: -20C (-4F) to 70C (158F). Storage temperature range: -30C (-22F) to 80C (176F). Maximum humidity: 95% non-condensing. Dimensions: 78 x 78 x 50 mm (W x H x D) Mounting hole dimensions: minimum 68 x 68 mm. Weight: 200g (approx.) Accuracy: Phase voltages: 2% + 1v Generator frequency: +/- 0.5Hz Housing material: Flame retardant high temperature ABS/PC (UL94-V0, 110C)
